how to check RF module working or not?


hi friend in this post we will learn how to check RF module working or not?

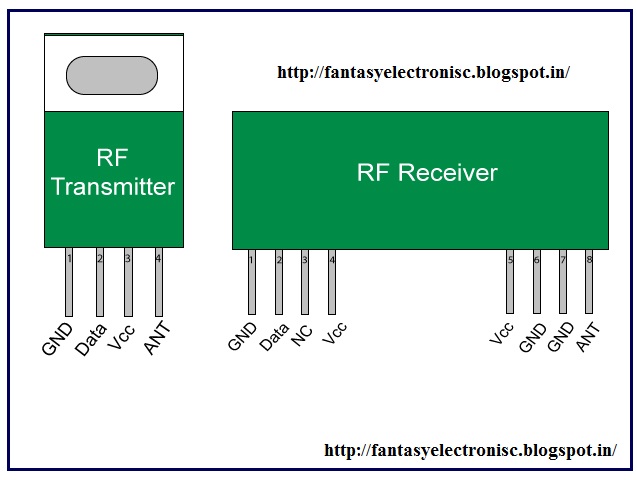

step to check RF module working
1>first connect all vcc and ground from breadboard .

2>then connect vcc(+5) volt from microcontroller kit to vcc of breadboard and same for ground.

3>then connect one end of led to receiver port of Rx and another to ground.

4>then switch on microcontroller kit we will notice that led will ON it means that Rx and Tx working properly

when 1 or vcc(+5)  is transmit from Tx then at receiver we will get 1 or vcc(+5) at Rx , by this led will turn ON.
