How To Design Your Own Automatic Hand Sanitizer using Arduino Nano
Components Required
| COMPONENTS AND SUPPLIES | Number | |
| Arduino Nano R3 | 1 | Click here |
| Theremino Driver DRV8825 for Stepper Motors for Theremino System | 1 | Click here |
| Jumper wires (generic) | 1 | Click here |
| Breadboard (generic) | 1 | Click here |
| 9V battery (generic) | 1 | Click here |
| 9V Battery Clip | 1 | Click here |
| Resistor 1k ohm | 1 | Click here |
| Capacitor 100 µF | 1 | Click here |
| 28BYJ-48 4 Phase Stepper Motor DC 5V For Arduino (OEM) | 1 | Click here |
| M3 Screw any lenght from 8mm to 20mm | 1 | Click here |
| Infrared Obstacle Avoidance Sensor Module for Arduino | 1 | Click here |
| Limit Switch KW12-3 - Micro Roller Lever Arm Normally Open/Close | 1 | Click here |
| Aluminium Rigid Coupling 5mm to 8mm | 1 | Click here |
| Trapezoidal Lead Screw T8-300mm with Brass Nut, Pitch 2mm | 1 | Click here |
| On-Off switch (generic) | 1 | Click here |
| Hand Sanitizer | 1 | Click here |
| 688zz Ball Bearing 8x16x5mm | 1 | Click here |
| LM8UU 8x15x24mm Solid Polymer Linear Bearing | 1 | Click here |
| Velcro ties | 1 | Click here |
| Hacksaw (generic) | 1 | Click here |
| Soldering iron (generic) | 1 | Click here |

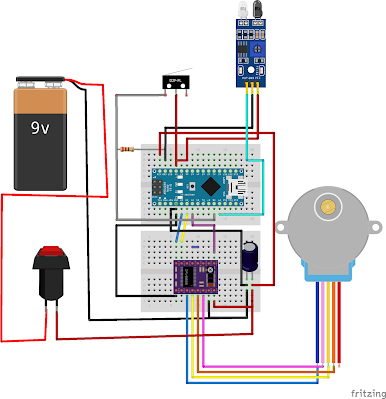

Download document, Circuit diagram and code from below link
Please share with friend and family.
